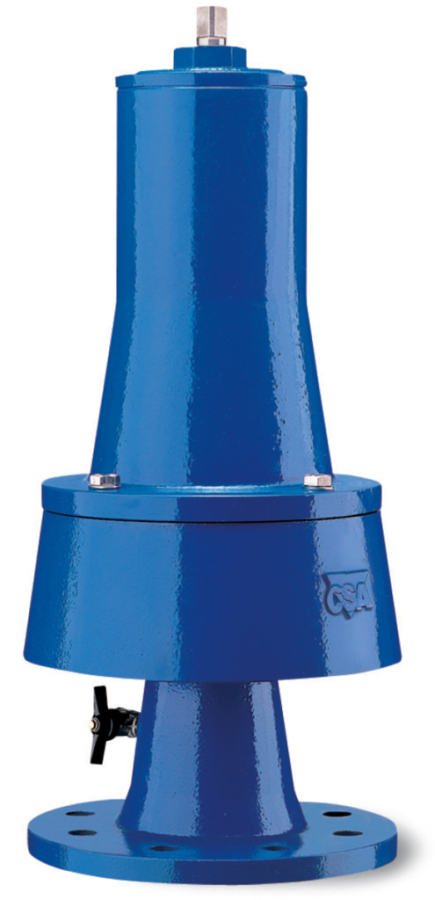

CSA PRESSURE RELIEF VALVE, PN16
VRCA, flanged DI body, free outlet, 1-8 bar, NBR seal, SS 316 trim, blue epoxy coating
Contact
AVK Philippines Inc.
70 West Avenue Brgy. West Triangle 1104 Quezon City, Philippines
Pressure relief valve to use with treated and raw water in main transmission lines to max. 70°C
The CSA fast acting, surge prevention, pressure relief valve Mod. VRCA has been designed to avoid the devastating effects of water hammers in pipeline networks. It effectively prevents pressure from rising above a pre-set value, thanks to its capability of discharging the excessive volume of water directly into the atmosphere.| Variant 862/20-001 | |
|---|---|
| Connection: | External BSP Thread |
| Material: | Stainless steel |
| DN: | DN50 - DN200 |
| PN: | PN 16 |
Features
- Solid and compact design suitable for treated and raw water
- Negligible inertia of the internal mobile parts ensuring low friction and long lasting performance
- Perfect water tightness and excellent resistance to cavitation and harsh working conditions due to the floating obturator technology and to the use of special gaskets and highly resistant stainless steel
- Fast and accurate response with no hysteresis thanks to high frequency annealed springs
- Vertical discharge deflector
Downloads
Datasheet

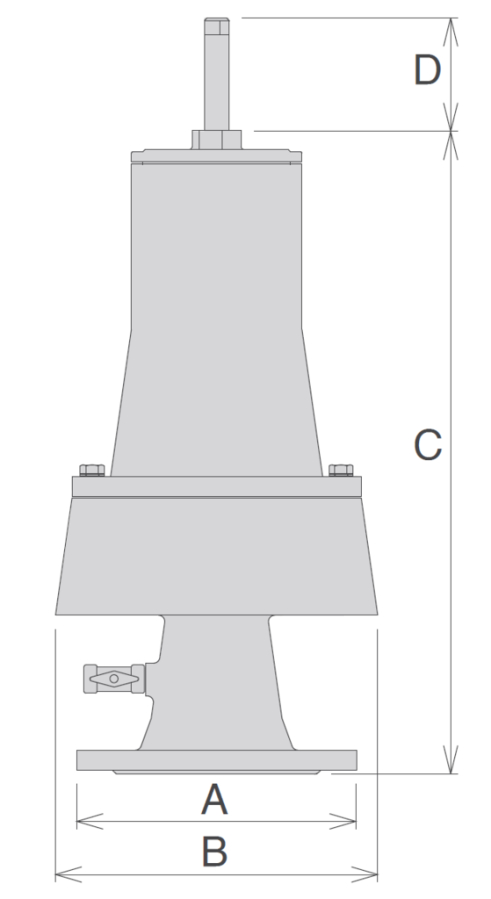

Reference nos. and dimensions:
Scroll for more info
| Reference no. | DN mm |
Flange drilling |
Press. Range bar |
A mm |
B mm |
C mm |
D mm |
Theoretical weight/kg |
|---|---|---|---|---|---|---|---|---|
| 862-050000-20-101 | 50 | PN16 | 1-8 | 185 | 185 | 417 | 40 | 14 |
| 862-050000-20-111 | 50 | PN16 | 8-16 | 185 | 185 | 417 | 40 | 14 |
| 862-065000-20-101 | 65 | PN16 | 1-8 | 185 | 185 | 417 | 40 | 14 |
| 862-065000-20-111 | 65 | PN16 | 8-16 | 185 | 185 | 417 | 40 | 14 |
| 862-080000-20-101 | 80 | PN16 | 1-8 | 235 | 242 | 540 | 50 | 28 |
| 862-080000-20-111 | 80 | PN16 | 8-16 | 235 | 242 | 540 | 50 | 28 |
| 862-100000-20-101 | 100 | PN16 | 1-8 | 235 | 242 | 540 | 50 | 28 |
| 862-100000-20-111 | 100 | PN16 | 8-16 | 235 | 242 | 540 | 50 | 28 |
| 862-150000-20-101 | 150 | PN16 | 1-8 | 300 | 404 | 720 | 220 | 75 |
| 862-150000-20-111 | 150 | PN16 | 8-16 | 300 | 404 | 720 | 220 | 75 |
| 862-200000-20-001 | 200 | PN10 | 1-8 | 360 | 404 | 720 | 220 | 79 |
| 862-200000-20-011 | 200 | PN10 | 8-16 | 360 | 404 | 720 | 220 | 79 |
| 862-200000-20-101 | 200 | PN16 | 1-8 | 360 | 404 | 720 | 220 | 79 |
| 862-200000-20-111 | 200 | PN16 | 8-16 | 360 | 404 | 720 | 220 | 79 |
Enquiry
Scroll for more info

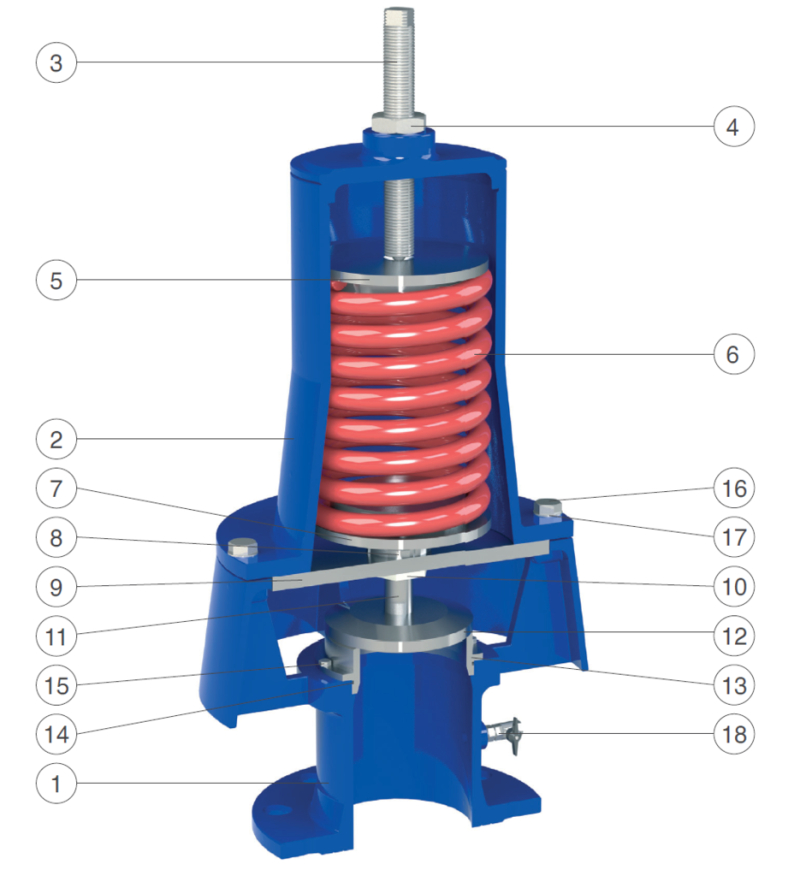

Components
| 1. | Body | Ductile iron GJS-450-10 |
| 2. | Cap | Ductile iron GJS-450-10 |
| 3. | Screw | Stainless steel A2 |
| 4. | Nut | Stainless steel A2 |
| 5. | Support washer | Stainless steel AISI 303 |
| 6. | Spring | Steel |
| 7. | Housing | Stainless steel AISI 303 |
| 8. | Ring | Stainless steel AISI 304 |
| 9. | Separator | Stainless steel AISI 304 |
| 10. | Sleeve | POM |
| 11. | Shaft | Stainless steel AISI 304 |
| 12. | Obturator | Stainless steel AISI 303 |
| 13. | Seat | Stainless steel AISI 304 |
| 14. | O-ring | NBR rubber |
| 15. | Screw | Stainless steel AISI 304 |
| 16. | Screw | Stainless steel AISI 304 |
| 17. | Washer | Stainless steel AISI 304 |
| 18. | Drain valve | Brass |
Standards
- Flange drilling to EN1092, PN10/16
