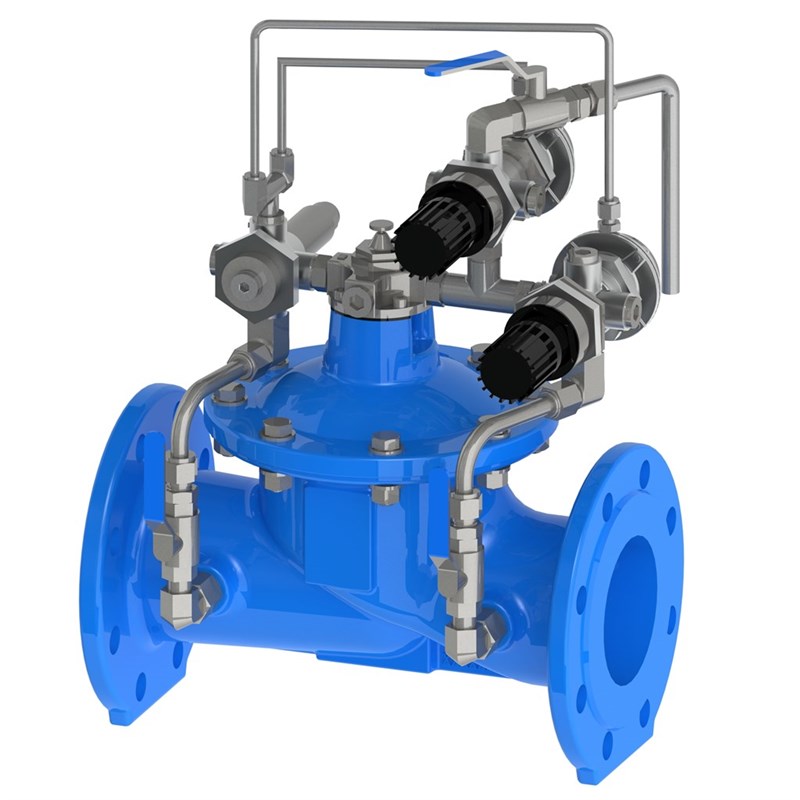

AVK CONTROL VALVE, SURGE ANTICIPATION, PN10/16

Reduced bore, AISI 316, 300µm blue EP coating

Contact

AVK Philippines Inc.

70 West Avenue Brgy. West Triangle 1104 Quezon City, Philippines

Surge anticipation control valve, reduced bore, for water and neutral liquids to max. 70° C

AVK series 859 diaphragm actuated surge anticipation and relief control valves constantly monitor the system pressure to protect against pressure surges. The surge anticipating pilot senses the rapid pressure drop caused by e.g. a power failure to the pump, often followed by a rapid and dangerous high-pressure surge. The drop below the low anticipating pilot setpoint opens the valve to anticipate the upcoming high-pressure surge. When the pressure from the high-pressure surge hits the valve, the pressure relief pilot opens the valve to dump excess pressure when exceeding the high relief pilot setpoint. When the normal system pressure is in between the respectively high and low pilot setpoints, the valve is closed. Precise setting and easy adjustment on the pilot handles without use of any tools.

Variant 859/0017-001
Connection: Flanged
Material: Ductile iron
DN: DN65 - DN600
PN: PN10/16

Features

  • The lifted seat design ensures less damage to the internal surface of the valve body in the vicinity of the seat area, due to cavitation
  • The parabolic shape of the plug creates a smooth regulating characteristic with low gain around the near-closed positions improving control performance at low flow
  • Non-symmetric axial position of rubber diaphragm results in low stretch stress when closed
  • Body and bonnet of ductile iron coated with fusion bonded epoxy, 300 micron, GSK approved, RAL 5017, according to DIN 3476 and WRAS-DVGW/W270/UBA
  • All rubber parts approved for drinking water
  • All non-coated internal parts in stainless steel
  • A needle valve fitted to the connection of the control chamber, allows for adjustment of the regulation reaction time
  • Closing the needle valve isolates the control chamber and fixes the position of the main valve plug. This allows for service of the pilot circuit, cleaning filter etc. without causing the valve to open fully

Downloads

Datasheet
Tender Text

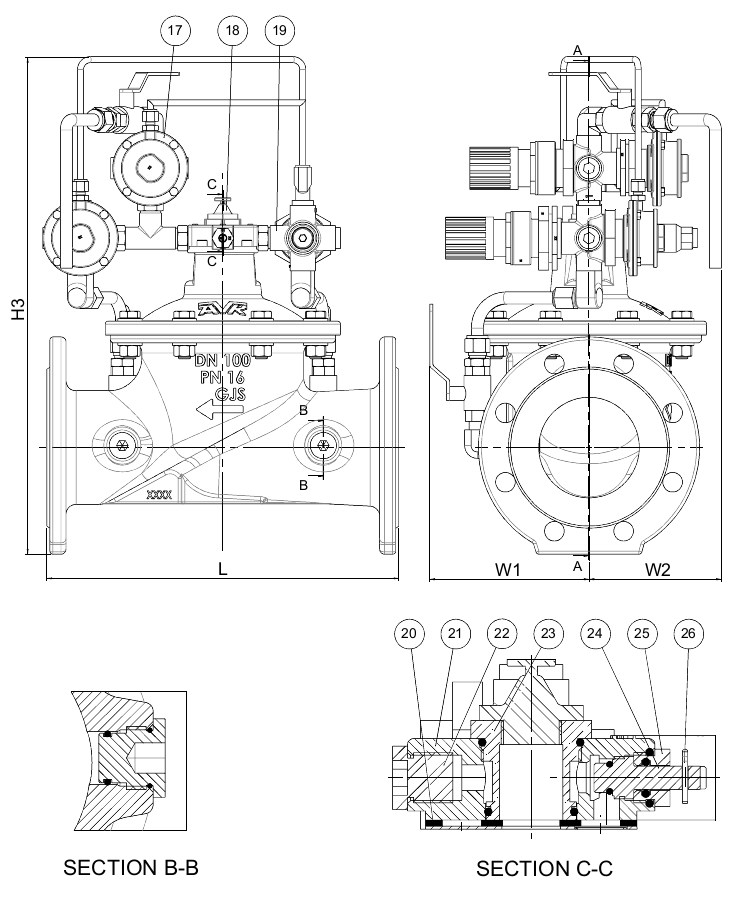

Reference nos. and dimensions:

Scroll for more info
Reference no. DN
mm		 Flange
drilling		 Lo press.
range/bar		 Hi press.
range/bar		 L
mm		 W1
mm		 W2
mm		 H3
mm		 Theoretical
weight/kg
859-0065-00-1140014 65 PN10/16 0.6 - 6 1.5 - 6 290 140 210 413 17
859-0065-00-1140015 65 PN10/16 0.6 - 6 5 - 10 290 140 210 413 17
859-0065-00-1140016 65 PN10/16 0.6 - 6 10 - 16 290 140 210 413 17
859-0080-00-1140014 80 PN10/16 0.6 - 6 1.5 - 6 310 140 210 431 21
859-0080-00-1140015 80 PN10/16 0.6 - 6 5 - 10 310 140 210 431 21
859-0080-00-1140016 80 PN10/16 0.6 - 6 10 - 16 310 140 210 431 21
859-0100-00-1140014 100 PN10/16 0.6 - 6 1.5 - 6 350 140 210 450 26
859-0100-00-1140015 100 PN10/16 0.6 - 6 5 - 10 350 140 210 450 26
859-0100-00-1140016 100 PN10/16 0.6 - 6 10 - 16 350 140 210 450 26
859-0125-00-1140014 125 PN10/16 0.6 - 6 1.5 - 6 400 145 210 469 31
859-0125-00-1140015 125 PN10/16 0.6 - 6 5 - 10 400 145 210 469 31
859-0125-00-1140016 125 PN10/16 0.6 - 6 10 - 16 400 145 210 469 31
859-0150-00-1140014 150 PN10/16 0.6 - 6 1.5 - 6 480 160 210 506 73
859-0150-00-1140015 150 PN10/16 0.6 - 6 5 - 10 480 160 210 506 73
859-0150-00-1140016 150 PN10/16 0.6 - 6 10 - 16 480 160 210 506 73
859-0200-00-0140014 200 PN10 0.6 - 6 1.5 - 6 600 203 210 598 87
859-0200-00-0140015 200 PN10 0.6 - 6 5 - 10 600 203 210 598 87
859-0200-00-1140014 200 PN16 0.6 - 6 1.5 - 6 600 203 210 598 87
859-0200-00-1140015 200 PN16 0.6 - 6 5 - 10 600 203 210 598 87
859-0200-00-1140016 200 PN16 0.6 - 6 10 - 16 600 203 210 598 87
859-0250-00-0140014 250 PN10 0.6 - 6 1.5 - 6 730 253 253 715 144
859-0250-00-0140015 250 PN10 0.6 - 6 5 - 10 730 253 253 715 144
859-0250-00-1140014 250 PN16 0.6 - 6 1.5 - 6 730 253 253 715 144
859-0250-00-1140015 250 PN16 0.6 - 6 5 - 10 730 253 253 715 144
859-0250-00-1140016 250 PN16 0.6 - 6 10 - 16 730 253 253 715 144
859-0300-00-0140014 300 PN10 0.6 - 6 1.5 - 6 850 277 277 792 203
859-0300-00-0140015 300 PN10 0.6 - 6 5 - 10 850 277 277 792 203
859-0300-00-1140014 300 PN16 0.6 - 6 1.5 - 6 850 277 277 792 203
859-0300-00-1140015 300 PN16 0.6 - 6 5 - 10 850 277 277 792 203
859-0300-00-1140016 300 PN16 0.6 - 6 10 - 16 850 277 277 792 203
859-0350-00-0140014 350 PN10 0.6 - 6 1.5 - 6 980 302 302 928 326
859-0350-00-0140015 350 PN10 0.6 - 6 5 - 10 980 302 302 928 326
859-0350-00-1140014 350 PN16 0.6 - 6 1.5 - 6 980 302 302 928 326
859-0350-00-1140015 350 PN16 0.6 - 6 5 - 10 980 302 302 928 326
859-0350-00-1140016 350 PN16 0.6 - 6 10 - 16 980 302 302 928 326
859-0400-00-0140014 400 PN10 0.6 - 6 1.5 - 6 1100 355 355 1051 498
859-0400-00-0140015 400 PN10 0.6 - 6 5 - 10 1100 355 355 1051 498
859-0400-00-1140014 400 PN16 0.6 - 6 1.5 - 6 1100 355 355 1051 498
859-0400-00-1140015 400 PN16 0.6 - 6 5 - 10 1100 355 355 1051 498
859-0400-00-1140016 400 PN16 0.6 - 6 10 - 16 1100 355 355 1051 498
859-0450-00-0140014 450 PN10 0.6 - 6 1.5 - 6 1200 398 398 1117 636
859-0450-00-0140015 450 PN10 0.6 - 6 5 - 10 1200 398 398 1117 636
859-0450-00-1140014 450 PN16 0.6 - 6 1.5 - 6 1200 398 398 1117 636
859-0450-00-1140015 450 PN16 0.6 - 6 5 - 10 1200 398 398 1117 636
859-0450-00-1140016 450 PN16 0.6 - 6 10 - 16 1200 398 398 1117 636
859-0500-00-0140014 500 PN10 0.6 - 6 1.5 - 6 1250 465 465 1300 938
859-0500-00-0140015 500 PN10 0.6 - 6 5 - 10 1250 465 465 1300 938
859-0500-00-1140014 500 PN16 0.6 - 6 1.5 - 6 1250 465 465 1300 938
859-0500-00-1140015 500 PN16 0.6 - 6 5 - 10 1250 465 465 1300 938
859-0500-00-1140016 500 PN16 0.6 - 6 10 - 16 1250 465 465 1300 938
859-0600-00-0140014 600 PN10 0.6 - 6 1.5 - 6 1450 509 509 1409 1282
859-0600-00-0140015 600 PN10 0.6 - 6 5 - 10 1450 509 509 1409 1282
859-0600-00-1140014 600 PN16 0.6 - 6 1.5 - 6 1450 509 509 1409 1282
859-0600-00-1140015 600 PN16 0.6 - 6 5 - 10 1450 509 509 1409 1282
859-0600-00-1140016 600 PN16 0.6 - 6 10 - 16 1450 509 509 1409 1282
Enquiry
Scroll for more info

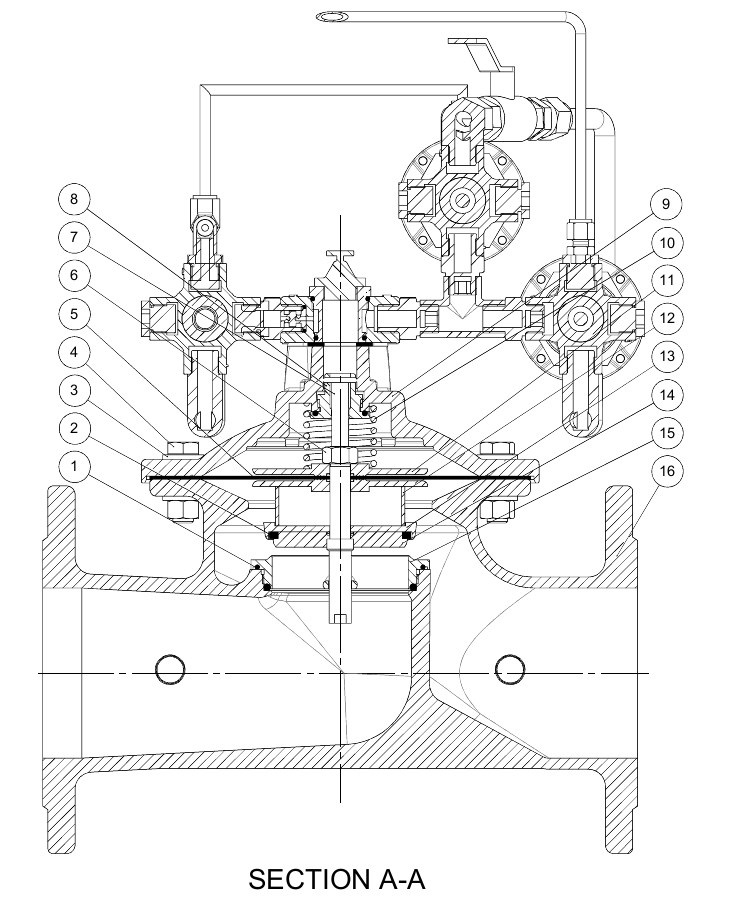

Components

1. O-ring EPDM rubber
2. Plug sealing EPDM rubber
3. Washer Stainless steel A4
4. Bolt Stainless steel A4
5. Diaphragm EPDM rubber
6. Nut Stainless steel A4
7. Stem Stainless steel 1.4462, duplex
8. Stem guide Stainless steel AISI 316
9. Bonnet Ductile iron GJS-500-7 (GGG-50)
10. Spring Stainless steel AISI 316
11. Diaphragm support Stainless steel AISI 316
12. Distance pipe Stainless steel AISI 316
13. Disc retainer Stainless steel AISI 316
14. Regulating plug Stainless steel AISI 316
15. Seat Stainless steel AISI 316
16. Body Ductile iron GJS-500-7 (GGG-50)
17. Pilot valve Stainless steel AISI 316
18. Air vent Stainless steel AISI 316
19. Filter Stainless steel AISI 316
20. Gasket EPDM rubber
21. Body Stainless steel AISI 316
22. Plug Stainless steel A4
23. Insert Stainless steel AISI 316
24. Needle Stainless steel AISI 316
25. Bushing Stainless steel AISI 316
26. Split pin Stainless steel A2

Test/Approvals

  • Seat: 1.1 x PN. Body: 1.5 x PN.
  • WRAS approved materials

Standards

  • EN 1074-5
  • Face-to-face dimension according to EN 558, Series 1
  • Flange drilling to EN1092, PN10/16
0 Files In the package
