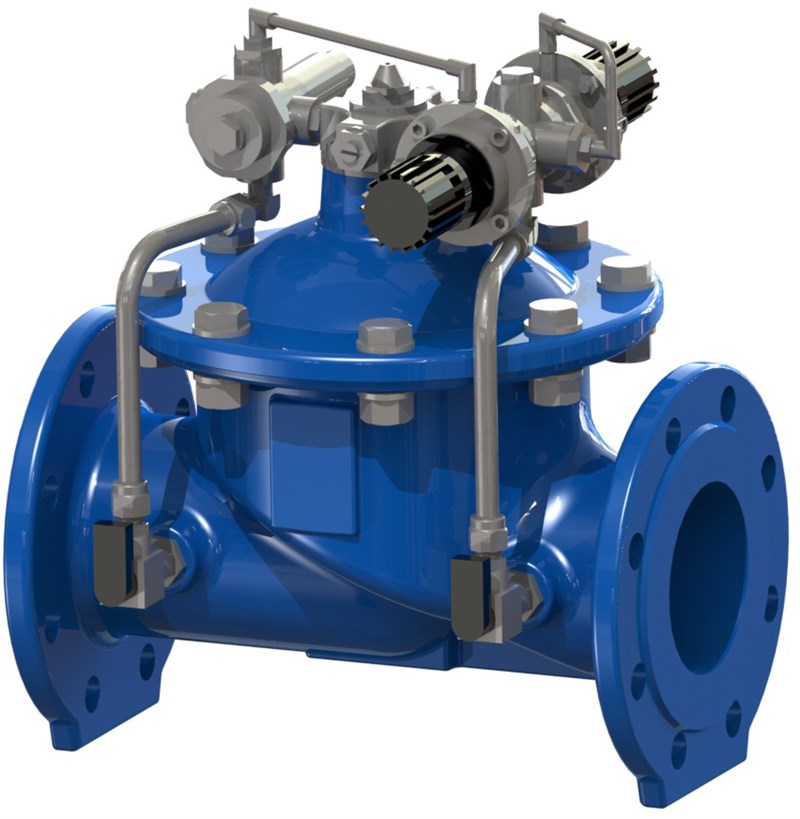

AVK control valve, pressure reducing / pressure sustaining, PN10/16

Full bore, AISI 316

Contact

AVK Philippines Inc.

70 West Avenue Brgy. West Triangle 1104 Quezon City, Philippines

Presure reducing/pressure sustaining control valve, full bore, for water and neutral liquids to max. 70° C

AVK diaphragm operated multi- function control valves for pressure reducing / pressure sustaining applications (PRV / PSV) automatically reduce a higher inlet pressure to a lower outlet pressure. The outlet pressure is kept constant, regardless of changes in flow rate or inlet pressure. The main control valve is pilot operated, capable of a precise setting and easy adjustment of outlet pressure. With priority, the valve is also sustaining inlet pressure, defined by set-point of PSV module.

Variant 859/1056-001
Connection: Flanged
Material: Ductile iron
DN: DN50 - DN300
PN: PN10/16

Features

Main control valve

  • Lifted seat to avoid damage due to cavitation
  • High Kv value at fully open position
  • Geometry of regulating plug provides high ratio of travel Kv, resulting in optimal control performance
  • Non-symmetric axial position of rubber diaphragm results in less stretch/stress near closed position
  • All non-coated internals made of stainless steel AISI 316
  • Body and bonnet of ductile iron with fusion bonded epoxy, 300micron, GSK approved, RAL 5017, according to DIN 3476 and WRAS-DVGW/W270/UBA.
  • All rubber components with multiple approvals (EN 681-1, KTW, W270, ACS, WRAS)

Pilot system

  • Modular and compact design for easy application change
  • Main components made of stainless steel AISI 316:
    • Distribution block:
      -  Connecting main control valve to pilot system
      -  Easy adjustment of regulating speed
      -  Control orifice
    • Filter:
      - High capacity, easy to flush with possibility of back flushing
      - Mesh 100, high performance wire screen type
    • Hydraulic control block:
      - Includes balanced pilot valve providing more stable pressure set
      - Can be set up for different applications, using single-function modules (SFM) or multi-function modules (MFM)

Downloads

Datasheet

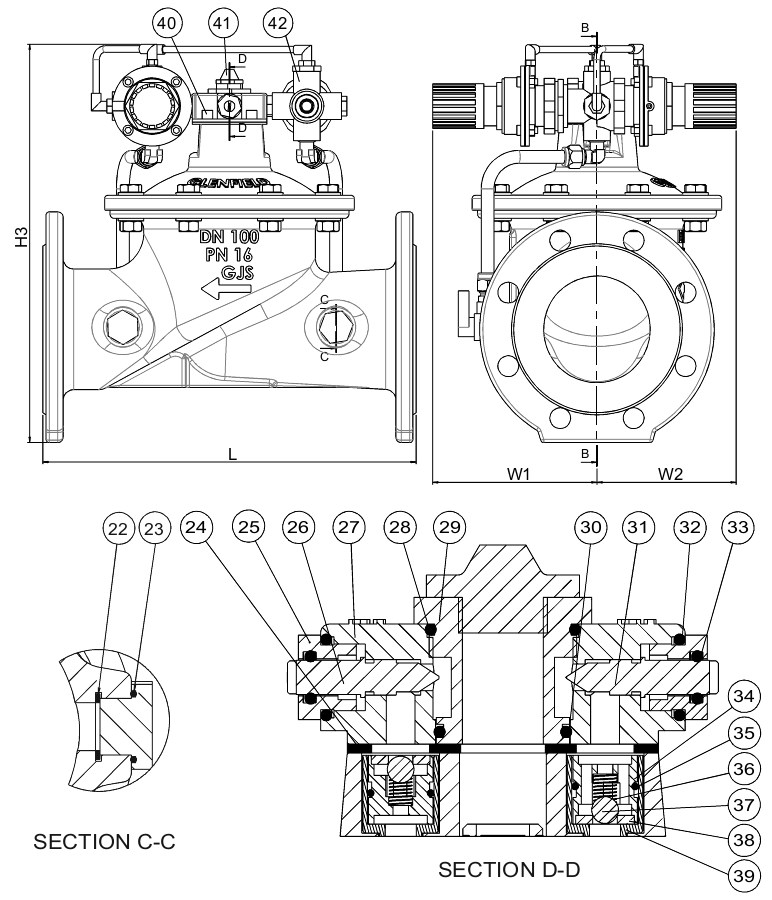

Reference nos. and dimensions:

Scroll for more info
Reference no. DN
mm		 Flange
drilling		 Press. red.
bar		 Press. sust.
bar		 L
mm		 W1
mm		 W2
mm		 H3
mm		 Theoretical
weight/kg
859-0050-10-1140050 50 PN10/16 0,6-6 1,5-6 245 108 131 321 14
859-0050-10-1140051 50 PN10/16 0,6-6 5-11 245 108 131 321 14
859-0050-10-1140052 50 PN10/16 0,6-6 10-16 245 108 131 321 14
859-0050-10-1140053 50 PN10/16 5-11 5-11 245 108 131 321 14
859-0050-10-1140054 50 PN10/16 5-11 10-16 245 108 131 321 14
859-0050-10-1140055 50 PN10/16 10-16 10-16 245 108 131 321 14
859-0065-10-1140050 65 PN10/16 0,6-6 1,5-6 305 115 131 346 19
859-0065-10-1140051 65 PN10/16 0,6-6 5-11 305 115 131 346 19
859-0065-10-1140052 65 PN10/16 0,6-6 10-16 305 115 131 346 19
859-0065-10-1140053 65 PN10/16 5-11 5-11 305 115 131 346 19
859-0065-10-1140054 65 PN10/16 5-11 10-16 305 115 131 346 19
859-0065-10-1140055 65 PN10/16 10-16 10-16 305 115 131 346 19
859-0080-10-1140050 80 PN10/16 0,6-6 1,5-6 325 125 131 366 23
859-0080-10-1140051 80 PN10/16 0,6-6 5-11 325 125 131 366 23
859-0080-10-1140052 80 PN10/16 0,6-6 10-16 325 125 131 366 23
859-0080-10-1140053 80 PN10/16 5-11 5-11 325 125 131 366 23
859-0080-10-1140054 80 PN10/16 5-11 10-16 325 125 131 366 23
859-0080-10-1140055 80 PN10/16 10-16 10-16 325 125 131 366 23
859-0100-10-1140050 100 PN10/16 0,6-6 1,5-6 365 140 140 392 32
859-0100-10-1140051 100 PN10/16 0,6-6 5-11 365 140 140 392 32
859-0100-10-1140052 100 PN10/16 0,6-6 10-16 365 140 140 392 32
859-0100-10-1140053 100 PN10/16 5-11 5-11 365 140 140 392 32
859-0100-10-1140054 100 PN10/16 5-11 10-16 365 140 140 392 32
859-0100-10-1140055 100 PN10/16 10-16 10-16 365 140 140 392 32
859-0150-10-1140050 150 PN10/16 0,6-6 1,5-6 495 203 203 497 73
859-0150-10-1140051 150 PN10/16 0,6-6 5-11 495 203 203 497 73
859-0150-10-1140052 150 PN10/16 0,6-6 10-16 495 203 203 497 73
859-0150-10-1140053 150 PN10/16 5-11 5-11 495 203 203 497 73
859-0150-10-1140054 150 PN10/16 5-11 10-16 495 203 203 497 73
859-0150-10-1140055 150 PN10/16 10-16 10-16 495 203 203 497 73
859-0200-10-0140050 200 PN10 0,6-6 1,5-6 615 253 253 609 125
859-0200-10-0140051 200 PN10 0,6-6 5-10 615 253 253 609 125
859-0200-10-0140053 200 PN10 5-10 5-10 615 253 253 609 125
859-0200-10-1140050 200 PN16 0,6-6 1,5-6 615 253 253 609 125
859-0200-10-1140051 200 PN16 0,6-6 5-11 615 253 253 609 125
859-0200-10-1140052 200 PN16 0,6-6 10-16 615 253 253 609 125
859-0200-10-1140053 200 PN16 5-11 5-11 615 253 253 609 125
859-0200-10-1140054 200 PN16 5-11 10-16 615 253 253 609 125
859-0200-10-1140055 200 PN16 10-16 10-16 615 253 253 609 125
859-0250-10-0140050 250 PN10 0,6-6 1,5-6 745 277 277 690 180
859-0250-10-0140051 250 PN10 0,6-6 5-10 745 277 277 690 180
859-0250-10-0140053 250 PN10 5-10 5-10 745 277 277 690 180
859-0250-10-1140050 250 PN16 0,6-6 1,5-6 745 277 277 690 180
859-0250-10-1140051 250 PN16 0,6-6 5-11 745 277 277 690 180
859-0250-10-1140052 250 PN16 0,6-6 10-16 745 277 277 690 180
859-0250-10-1140053 250 PN16 5-11 5-11 745 277 277 690 180
859-0250-10-1140054 250 PN16 5-11 10-16 745 277 277 690 180
859-0250-10-1140055 250 PN16 10-16 10-16 745 277 277 690 180
859-0300-10-0140050 300 PN10 0,6-6 1,5-6 865 302 302 761 233
859-0300-10-0140051 300 PN10 0,6-6 5-10 865 302 302 761 233
859-0300-10-0140053 300 PN10 1,5-16 1,5-16 865 302 302 761 233
859-0300-10-1140050 300 PN16 0,6-6 1,5-6 865 302 302 761 233
859-0300-10-1140051 300 PN16 0,6-6 5-11 865 302 302 761 233
859-0300-10-1140052 300 PN16 0,6-6 10-16 865 302 302 761 233
859-0300-10-1140053 300 PN16 5-11 5-11 865 302 302 761 233
859-0300-10-1140054 300 PN16 5-11 10-16 865 302 302 761 233
859-0300-10-1140055 300 PN16 10-16 10-16 865 302 302 761 233
Enquiry
Scroll for more info

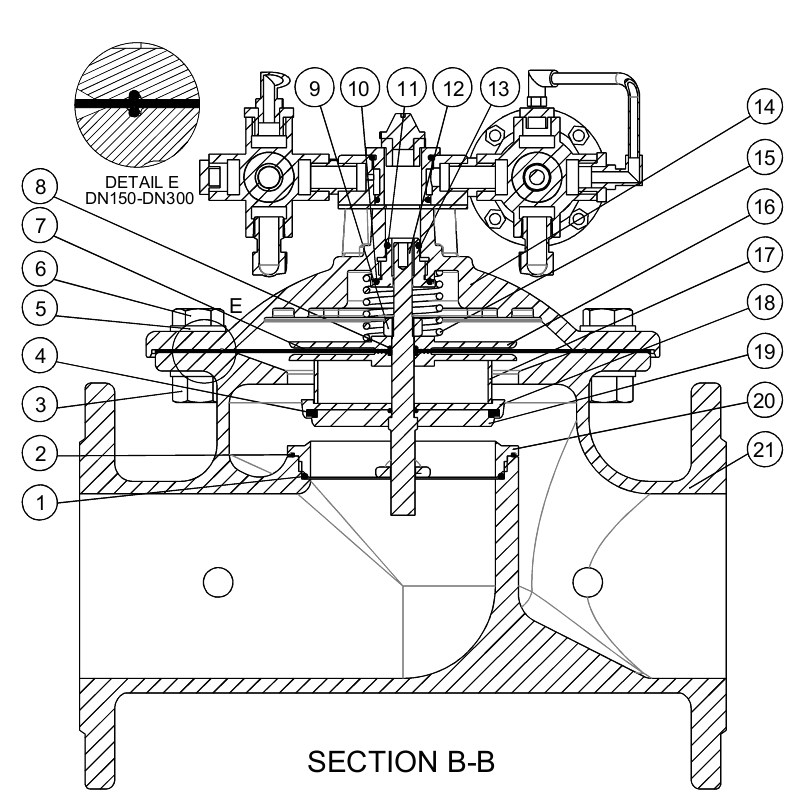

Components

1. O-ring EPDM rubber
2. O-ring EPDM rubber
3. Hex nut Stainless steel A4, anti friction
4. Plug sealing EPDM rubber
5. Washer Stainless steel A4
6. Bolt Stainless steel A4
7. Diaphragm EPDM rubber
8. O-ring EPDM rubber
9. Hex nut Stainless steel A4, anti friction
10. Flat seal EPDM rubber
11. Flat seal EPDM rubber
12. Stem Stainless steel AISI 316
13. Stem guide Stainless steel AISI 316
14. Bonnet Ductile iron GJS-500-7 (GGG-50)
15. Spring Stainless steel AISI 316
16. Diaphragm support Stainless steel AISI 316
17. Distance pipe Stainless steel AISI 316
18. Plug retainer Stainless steel AISI 316
19. Regulating plug Stainless steel AISI 316
20. Seat Stainless steel AISI 316
21. Body Ductile iron GJS-500-7 (GGG-50)
22. Flat seal EPDM rubber
23. O-ring NBR rubber
24. Gasket EPDM rubber
25. Bushing Stainless steel AISI 316
26. Needle close control Stainless steel AISI 316
27. Body Stainless steel AISI 316
28. O-ring EPDM rubber
29. Insert Stainless steel AISI 316
30. O-ring EPDM rubber
31. Needle open control Stainless steel AISI 316
32. O-ring EPDM rubber
33. O-ring EPDM rubber
34. Body Stainless steel AISI 316
35. O-ring EPDM rubber
36. Spring Stainless steel AISI 316
37. Ball Stainless steel AISI 316
38. Seat Stainless steel AISI 316
39. Bushing Stainless steel AISI 316
40. Bolt Stainless steel A4
41. Mechanical air-vent Stainless steel AISI 316
42. Filter Stainless steel AISI 316

Test/Approvals

  • Seat: 1.1 x PN. Body: 1.5 x PN.
  • WRAS approved materials

Standards

  • EN 1074-5
  • Face-to-face dimension according to EN 558, series 1
  • Flange drilling to EN1092, PN10/16
