AVK SOCKET BEND
BEND 11.25° W/MECHANICAL JOINTS, PN16
Contact
AVK Philippines Inc.
70 West Avenue Brgy. West Triangle 1104 Quezon City, Philippines
Double socket bend 11.25° type MMK for DI pipes for water, waste water and neutral liquids to max. 70° C
AVK’s range of fittings comprises a wide selection of variants with socket and flange connection. The fittings are made of ductile iron GJS-500-7 and are epoxy coated according to DIN 3476 and GSK specifications - internally and externally.
| Variant 712/0160-001 | |
|---|---|
| Connection: | Mechanical Joints |
| Material: | Ductile iron |
| DN: | DN100 - DN300 |
| PN: | PN 16 |
Features
- Ductile iron fitting to EN 545
- Body of GJS-500-7
- Epoxy coated to DIN 3476 and GSK internally and externally
Downloads
Datasheet
Reference nos. and dimensions:
Scroll for more info
| Reference no. | DN mm |
L mm |
Theoretical weight/kg |
|---|---|---|---|
| 712-0100-01-601 | 100 | 30 | 14 |
| 712-0150-01-601 | 150 | 35 | 24 |
| 712-0300-01-601 | 300 | 55 | 49 |
Enquiry
Scroll for more info

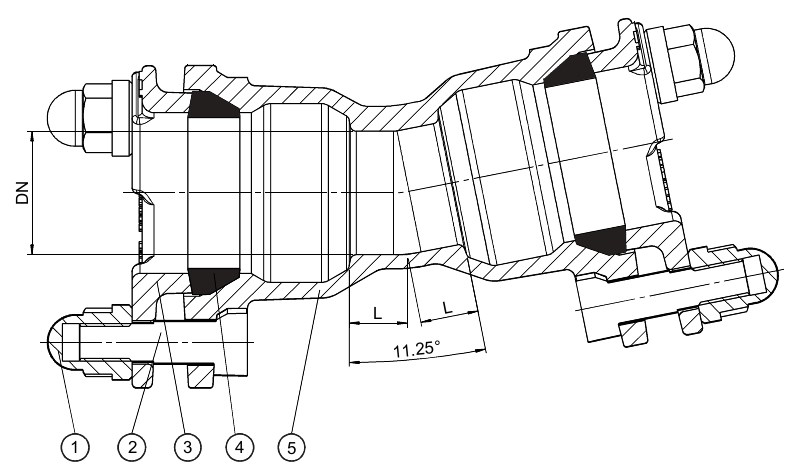

Components
| 1. | Nut | Steel S235JR |
| 2. | Bolt | Steel S235JR |
| 3. | Gland flange | Ductile Iron |
| 4. | Gasket | EPDM rubber |
| 5. | Body | Ductile Iron |
Standards
- EN 545
