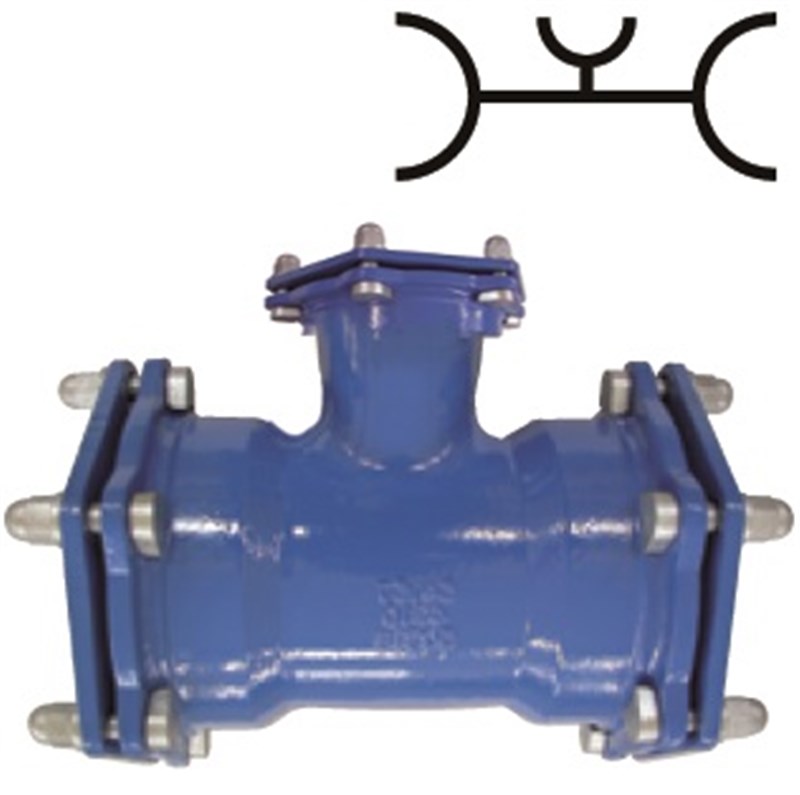

AVK SOCKET TEE
TEE W/MECHANICAL JOINTS, PN16
Contact
AVK Philippines Inc.
70 West Avenue Brgy. West Triangle 1104 Quezon City, Philippines
Socket Tee type MMB for DI pipes for water, waste water and neutral liquids to max. 70° C
AVK’s range of fittings comprises a wide selection of variants with socket and flange connection. The fittings are made of ductile iron GJS-500-7 and are epoxy coated according to DIN 3476 and GSK specifications - internally and externally.
| Variant 712/1060-001 | |
|---|---|
| Connection: | Mechanical Joints |
| Material: | Ductile iron |
| DN: | DN80 - DN250 |
| PN: | PN 16 |
Features
- Ductile iron fitting to EN 545
- Body of GJS-500-7
- Epoxy coated to DIN 3476 and GSK internally and externally
Downloads
Datasheet

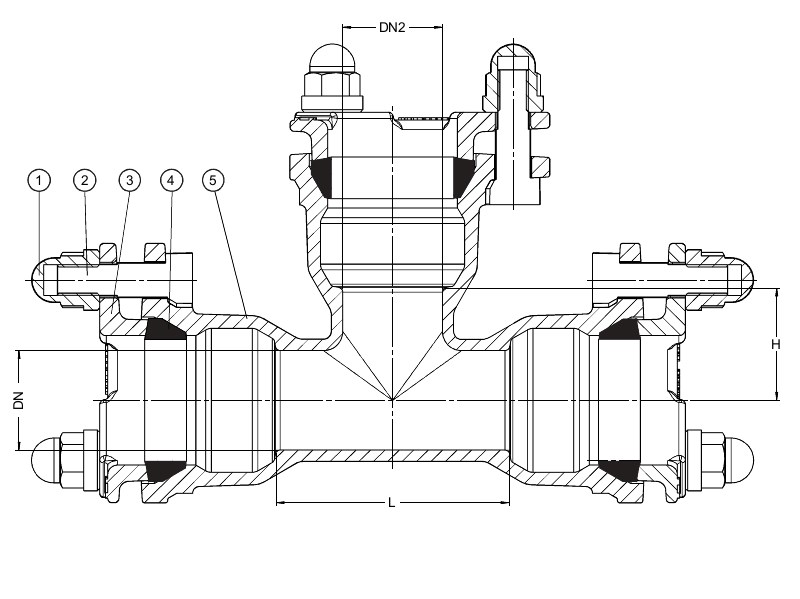

Reference nos. and dimensions:
Scroll for more info
| Reference no. | DN mm |
DN2 mm |
L mm |
H mm |
Theoretical weight/kg |
|---|---|---|---|---|---|
| 712-0080-10-601 | 80 | 80 | 170 | 85 | 19 |
| 712-0100-10-601 | 100 | 100 | 190 | 95 | 22 |
| 712-0101-10-601 | 100 | 80 | 170 | 95 | 20 |
| 712-0150-10-601 | 150 | 150 | 255 | 125 | 33 |
| 712-0152-10-601 | 150 | 100 | 195 | 120 | 31 |
| 712-0153-10-601 | 150 | 80 | 170 | 120 | 30 |
| 712-0200-10-601 | 200 | 200 | 315 | 155 | 56 |
| 712-0201-10-601 | 200 | 150 | 255 | 150 | 51 |
| 712-0203-10-601 | 200 | 100 | 200 | 145 | 45 |
| 712-0204-10-601 | 200 | 80 | 175 | 145 | 44 |
| 712-0250-10-601 | 250 | 250 | 374 | 190 | 74 |
| 712-0251-10-601 | 250 | 200 | 315 | 180 | 65 |
| 712-0252-10-601 | 250 | 150 | 260 | 175 | 59 |
| 712-0254-10-601 | 250 | 100 | 200 | 170 | 52 |
Enquiry
Scroll for more info
Components
| 1. | Nut | Steel S235JR |
| 2. | Bolt | Steel S235JR |
| 3. | Gland flange | Ductile Iron |
| 4. | Gasket | EPDM rubber |
| 5. | Body | Ductile Iron |
Standards
- EN 545
