New swing check valve variant

The updated version is equipped with a limit switch to indicate a close position. 05-03-2024

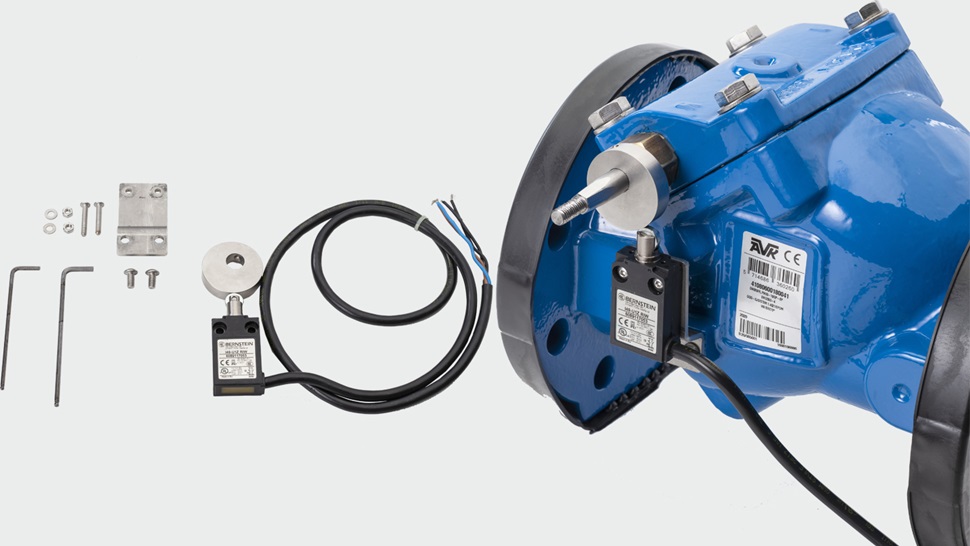

The limit switch is activated by an eccentric cam disc with set screw equipped on the shaft for lever and weight. The set screw enables adjustments of the cam disc position that gives the signal. Since the disc will move slightly up and down in the flow in an open position, it does not make sense to get a signal indicating open position.

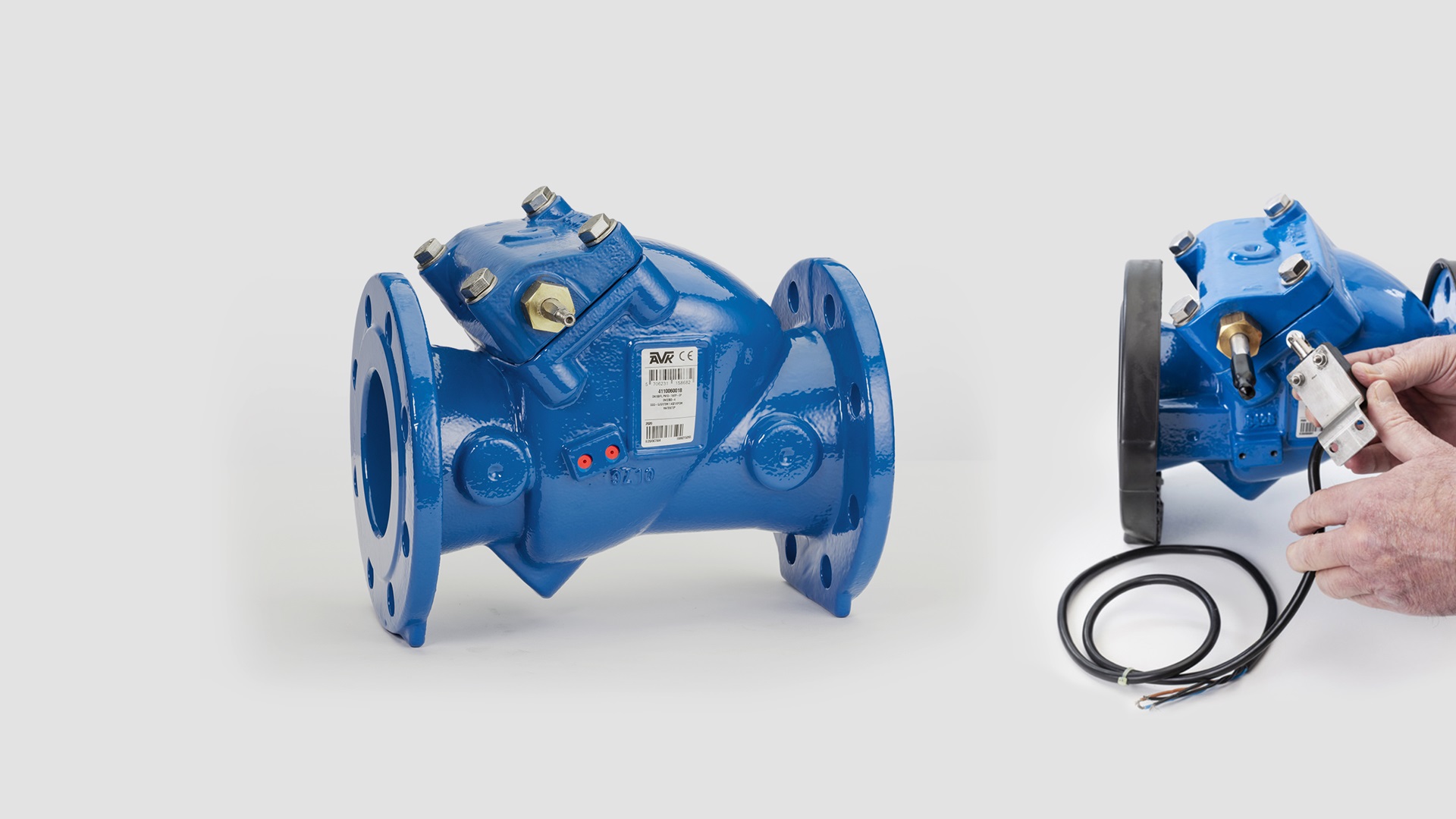

Kits containing limit switch and mounting bracket are available as accessories.

The swing check valves can be installed with lever and weight or with bare shaft.

Product Insights

AVK Swing check valves

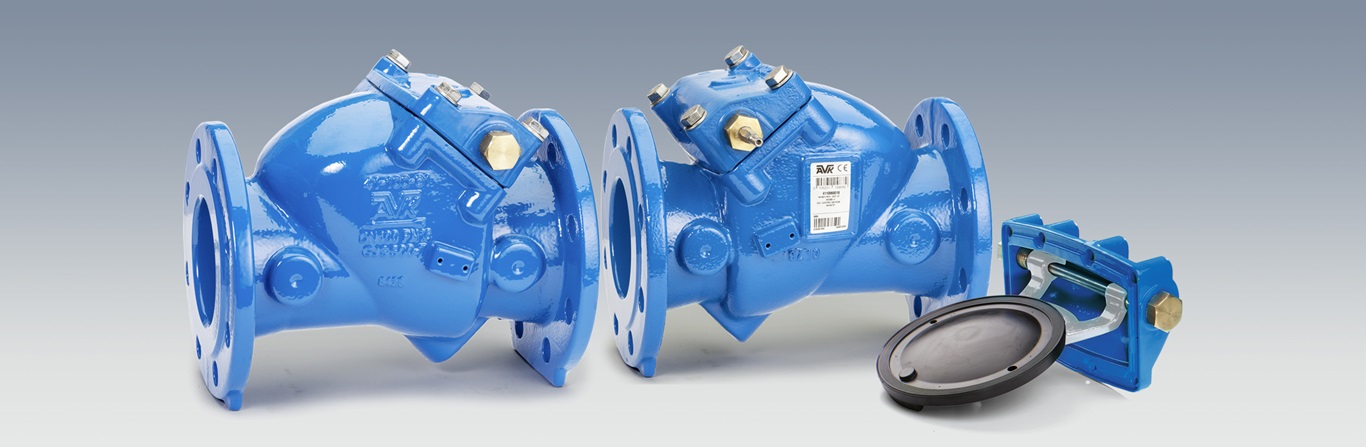

AVK swing check valves are available in DN50-DN1000 and feature full bore and low head loss, as well as easy access to maintenance and a great durability. The swing check valves can be installed in both horizontal and vertical positions.
